Re: My 73 Chevelle turbo LS swap
Yeah Ive got exhaust wrap to wrap all the hot pipes in, and a turbo blanket for the turbo, should keep anything from melting.
Can see the blanket here from when I was mocking everything up on one of the spare 5.3s
![My 73 Chevelle turbo LS swap - Page 3 2017-020](https://i.servimg.com/u/f62/14/24/94/52/2017-020.jpg)
Can see the blanket here from when I was mocking everything up on one of the spare 5.3s
![My 73 Chevelle turbo LS swap - Page 3 2017-020](https://i.servimg.com/u/f62/14/24/94/52/2017-020.jpg)
alowerlevel- G3GM Member
- Street Cred : 6
Re: My 73 Chevelle turbo LS swap
Had a little free time today so i got the manifold wrapped.
![My 73 Chevelle turbo LS swap - Page 3 20171111](https://i.servimg.com/u/f62/14/24/94/52/20171111.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20171110](https://i.servimg.com/u/f62/14/24/94/52/20171110.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20171111](https://i.servimg.com/u/f62/14/24/94/52/20171111.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20171110](https://i.servimg.com/u/f62/14/24/94/52/20171110.jpg)
alowerlevel- G3GM Member
- Street Cred : 6
Re: My 73 Chevelle turbo LS swap
Test fired it, still need to tune it but it runs (kinda
)
![Laughing](https://2img.net/i/fa/i/smiles/icon_lol.gif)
alowerlevel- G3GM Member
- Street Cred : 6
Re: My 73 Chevelle turbo LS swap
Played with the tune some and got it running much better
alowerlevel- G3GM Member
- Street Cred : 6
Re: My 73 Chevelle turbo LS swap
More recent pics
Crossover & wastegate
![My 73 Chevelle turbo LS swap - Page 3 2017-135](https://i.servimg.com/u/f62/14/24/94/52/2017-135.jpg)
4" Downpipe
![My 73 Chevelle turbo LS swap - Page 3 2017-137](https://i.servimg.com/u/f62/14/24/94/52/2017-137.jpg)
![My 73 Chevelle turbo LS swap - Page 3 2017-131](https://i.servimg.com/u/f62/14/24/94/52/2017-131.jpg)

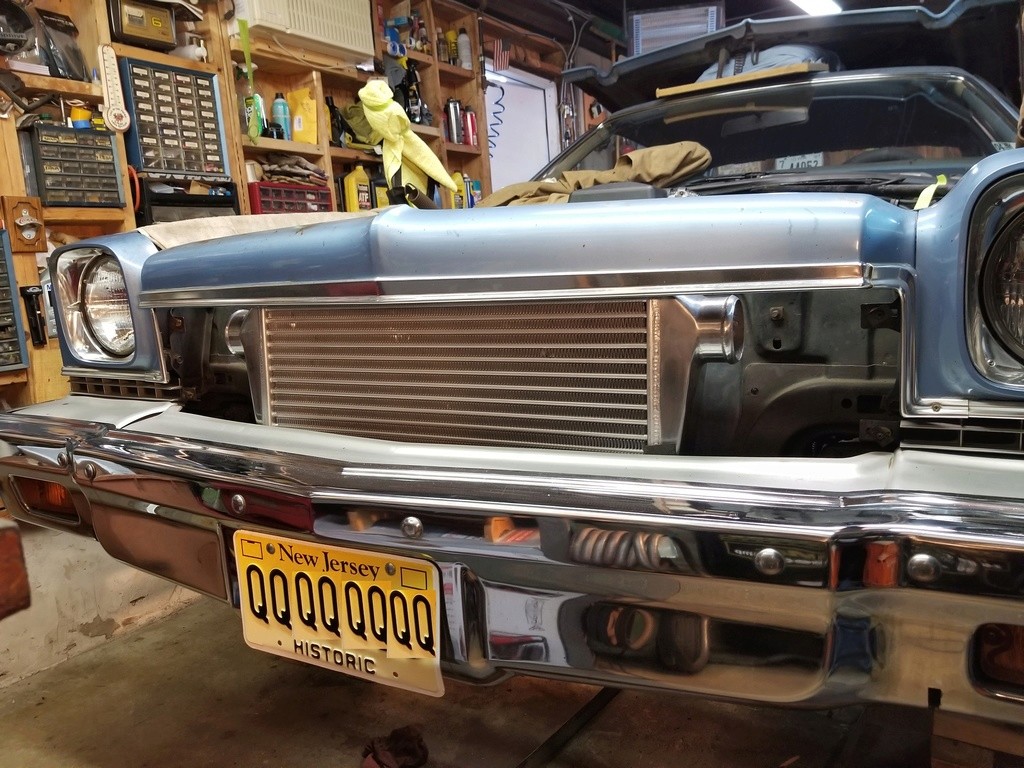

Intercooler placement
![My 73 Chevelle turbo LS swap - Page 3 2017-138](https://i.servimg.com/u/f62/14/24/94/52/2017-138.jpg)
BOV
![My 73 Chevelle turbo LS swap - Page 3 2017-134](https://i.servimg.com/u/f62/14/24/94/52/2017-134.jpg)
![My 73 Chevelle turbo LS swap - Page 3 2017-136](https://i.servimg.com/u/f62/14/24/94/52/2017-136.jpg)
Yes a 4" downpipe will fit Â
![My 73 Chevelle turbo LS swap - Page 3 2017-130](https://i.servimg.com/u/f62/14/24/94/52/2017-130.jpg)
Got new wheels for it too, 15x4 & 15x10 (just have to wait to buy tires)
![My 73 Chevelle turbo LS swap - Page 3 2017-133](https://i.servimg.com/u/f62/14/24/94/52/2017-133.jpg)
![My 73 Chevelle turbo LS swap - Page 3 2017-132](https://i.servimg.com/u/f62/14/24/94/52/2017-132.jpg)
![My 73 Chevelle turbo LS swap - Page 3 2018-010](https://i.servimg.com/u/f62/14/24/94/52/2018-010.jpg)
Crossover & wastegate
![My 73 Chevelle turbo LS swap - Page 3 2017-135](https://i.servimg.com/u/f62/14/24/94/52/2017-135.jpg)
4" Downpipe
![My 73 Chevelle turbo LS swap - Page 3 2017-137](https://i.servimg.com/u/f62/14/24/94/52/2017-137.jpg)
![My 73 Chevelle turbo LS swap - Page 3 2017-131](https://i.servimg.com/u/f62/14/24/94/52/2017-131.jpg)
Intercooler placement
![My 73 Chevelle turbo LS swap - Page 3 2017-138](https://i.servimg.com/u/f62/14/24/94/52/2017-138.jpg)
BOV
![My 73 Chevelle turbo LS swap - Page 3 2017-134](https://i.servimg.com/u/f62/14/24/94/52/2017-134.jpg)
![My 73 Chevelle turbo LS swap - Page 3 2017-136](https://i.servimg.com/u/f62/14/24/94/52/2017-136.jpg)
Yes a 4" downpipe will fit Â
![Clapp](/users/1813/58/83/10/smiles/852610.gif)
![My 73 Chevelle turbo LS swap - Page 3 2017-130](https://i.servimg.com/u/f62/14/24/94/52/2017-130.jpg)
Got new wheels for it too, 15x4 & 15x10 (just have to wait to buy tires)
![My 73 Chevelle turbo LS swap - Page 3 2017-133](https://i.servimg.com/u/f62/14/24/94/52/2017-133.jpg)
![My 73 Chevelle turbo LS swap - Page 3 2017-132](https://i.servimg.com/u/f62/14/24/94/52/2017-132.jpg)
![My 73 Chevelle turbo LS swap - Page 3 2018-010](https://i.servimg.com/u/f62/14/24/94/52/2018-010.jpg)
alowerlevel- G3GM Member
- Street Cred : 6
Re: My 73 Chevelle turbo LS swap
Sweet job on the wrap.
REVINKEVIN / Mr. 600+HP- G3GM Senior Member
- Street Cred : 20
Re: My 73 Chevelle turbo LS swap
does the ctsv oil pan hang below the crossmember?
TrendSetter- G3GM Member
- Street Cred : 0
Re: My 73 Chevelle turbo LS swap
Looks like I need to go back and update the old posts with pics again now that photof**kup killed all the pics......
Yes, its about 3/4" below the crossmember. Â If i had to do it again i would have used the Holley pan.
![My 73 Chevelle turbo LS swap - Page 3 20140510](https://i.servimg.com/u/f62/14/24/94/52/20140510.jpg)
TrendSetter wrote:does the ctsv oil pan hang below the crossmember?
Yes, its about 3/4" below the crossmember. Â If i had to do it again i would have used the Holley pan.
![My 73 Chevelle turbo LS swap - Page 3 20140510](https://i.servimg.com/u/f62/14/24/94/52/20140510.jpg)
alowerlevel- G3GM Member
- Street Cred : 6
Re: My 73 Chevelle turbo LS swap
What's the brand of your new wheels? Are they forged?
builtnotbought- G3GM Member
- Street Cred : 3
Re: My 73 Chevelle turbo LS swap
builtnotbought wrote:What's the brand of your new wheels? Are they forged?
Nope they are cast, but it doesnt bother me considering what I paid for them (<$350 for all 4) Jegs sells them as their brand, but they are made by Vision wheel http://www.jegs.com/p/JEGS-Performance-Products/JEGS-SSR-Star-Wheels/3663732/10002/-1?productId=3663732&N=0&Ns=P_Margin%7c0%7c%7cP_SKU%7c0&Tab=SKU&storeId=10001&catalogId=10002&langId=-1&Nrpp=180
alowerlevel- G3GM Member
- Street Cred : 6
Re: My 73 Chevelle turbo LS swap
Got the exhaust done, 4" from the turbo back. My plan was to have it exit right in front of the rear tire but i didnt have enough 4" left to get it that far, so this will do for now.
![My 73 Chevelle turbo LS swap - Page 3 2018-017](https://i.servimg.com/u/f62/14/24/94/52/2018-017.jpg)
![My 73 Chevelle turbo LS swap - Page 3 2018-015](https://i.servimg.com/u/f62/14/24/94/52/2018-015.jpg)
![My 73 Chevelle turbo LS swap - Page 3 2018-016](https://i.servimg.com/u/f62/14/24/94/52/2018-016.jpg)
![My 73 Chevelle turbo LS swap - Page 3 2018-017](https://i.servimg.com/u/f62/14/24/94/52/2018-017.jpg)
![My 73 Chevelle turbo LS swap - Page 3 2018-015](https://i.servimg.com/u/f62/14/24/94/52/2018-015.jpg)
![My 73 Chevelle turbo LS swap - Page 3 2018-016](https://i.servimg.com/u/f62/14/24/94/52/2018-016.jpg)
Last edited by alowerlevel on Thu Feb 22, 2018 12:41 pm; edited 1 time in total
alowerlevel- G3GM Member
- Street Cred : 6
Re: My 73 Chevelle turbo LS swap
Got a shifter for it
![My 73 Chevelle turbo LS swap - Page 3 20180310](https://i.servimg.com/u/f62/14/24/94/52/20180310.jpg)
Got my brother to mount the tires for me (haven't put them on the car yet)
![My 73 Chevelle turbo LS swap - Page 3 54448210](https://i.servimg.com/u/f62/14/24/94/52/54448210.jpg)
![My 73 Chevelle turbo LS swap - Page 3 Img_3010](https://i.servimg.com/u/f62/14/24/94/52/img_3010.jpg)

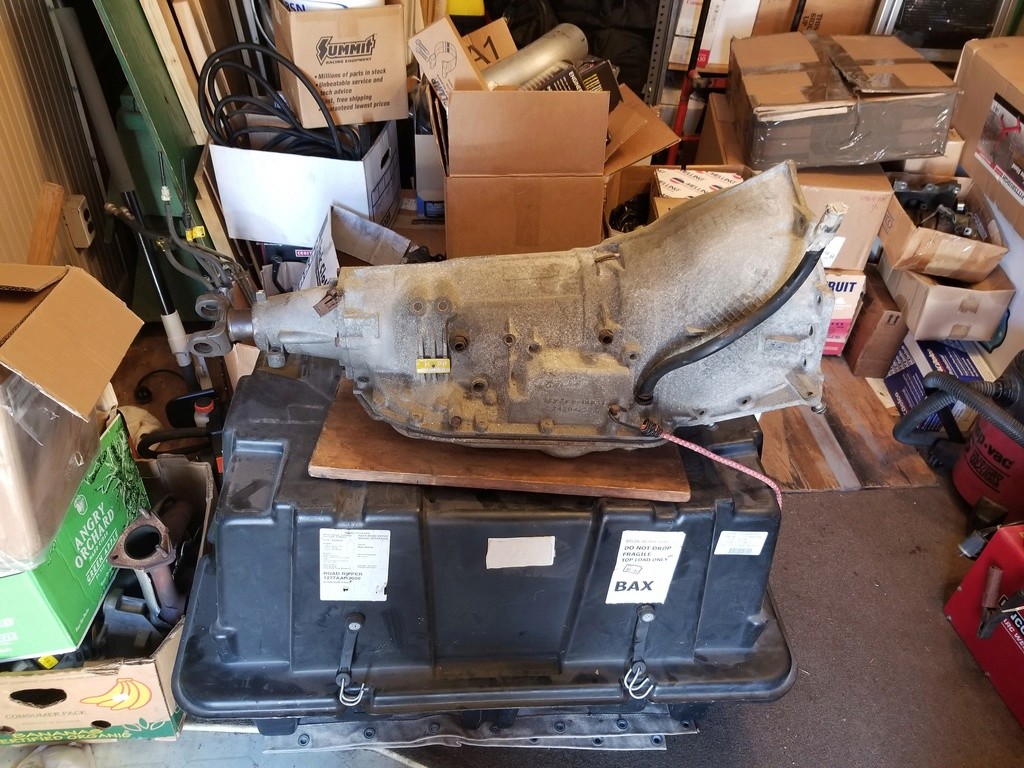

Also got a deal on a 4l80e trans
![My 73 Chevelle turbo LS swap - Page 3 20180312](https://i.servimg.com/u/f62/14/24/94/52/20180312.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180311](https://i.servimg.com/u/f62/14/24/94/52/20180311.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180313](https://i.servimg.com/u/f62/14/24/94/52/20180313.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180310](https://i.servimg.com/u/f62/14/24/94/52/20180310.jpg)
Got my brother to mount the tires for me (haven't put them on the car yet)
![My 73 Chevelle turbo LS swap - Page 3 54448210](https://i.servimg.com/u/f62/14/24/94/52/54448210.jpg)
![My 73 Chevelle turbo LS swap - Page 3 Img_3010](https://i.servimg.com/u/f62/14/24/94/52/img_3010.jpg)
Also got a deal on a 4l80e trans
![My 73 Chevelle turbo LS swap - Page 3 20180312](https://i.servimg.com/u/f62/14/24/94/52/20180312.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180311](https://i.servimg.com/u/f62/14/24/94/52/20180311.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180313](https://i.servimg.com/u/f62/14/24/94/52/20180313.jpg)
alowerlevel- G3GM Member
- Street Cred : 6
Re: My 73 Chevelle turbo LS swap
Them are gonna look killer against the blue
___________________________________________
1977 Chevelle SE x2
One Mild original
one Wild NON original
Anthony
Limey SE- Management
- Street Cred : 98
Re: My 73 Chevelle turbo LS swap
Sneek peak of the wheels on the car until this weekend.
The fronts are 205/75s on 15x4s
The rears are 275/60s on 15x10s
![My 73 Chevelle turbo LS swap - Page 3 2018-019](https://i.servimg.com/u/f62/14/24/94/52/2018-019.jpg)
![My 73 Chevelle turbo LS swap - Page 3 2018-018](https://i.servimg.com/u/f62/14/24/94/52/2018-018.jpg)
![My 73 Chevelle turbo LS swap - Page 3 2018-020](https://i.servimg.com/u/f62/14/24/94/52/2018-020.jpg)
The fronts are 205/75s on 15x4s
The rears are 275/60s on 15x10s
![My 73 Chevelle turbo LS swap - Page 3 2018-019](https://i.servimg.com/u/f62/14/24/94/52/2018-019.jpg)
![My 73 Chevelle turbo LS swap - Page 3 2018-018](https://i.servimg.com/u/f62/14/24/94/52/2018-018.jpg)
![My 73 Chevelle turbo LS swap - Page 3 2018-020](https://i.servimg.com/u/f62/14/24/94/52/2018-020.jpg)
alowerlevel- G3GM Member
- Street Cred : 6
Re: My 73 Chevelle turbo LS swap
![My 73 Chevelle turbo LS swap - Page 3 978692](/users/1813/58/83/10/smiles/978692.gif)
![:<P](/users/1813/58/83/10/smiles/2615402659.jpg)
___________________________________________
1977 Chevelle SE x2
One Mild original
one Wild NON original
Anthony
Limey SE- Management
- Street Cred : 98
Re: My 73 Chevelle turbo LS swap

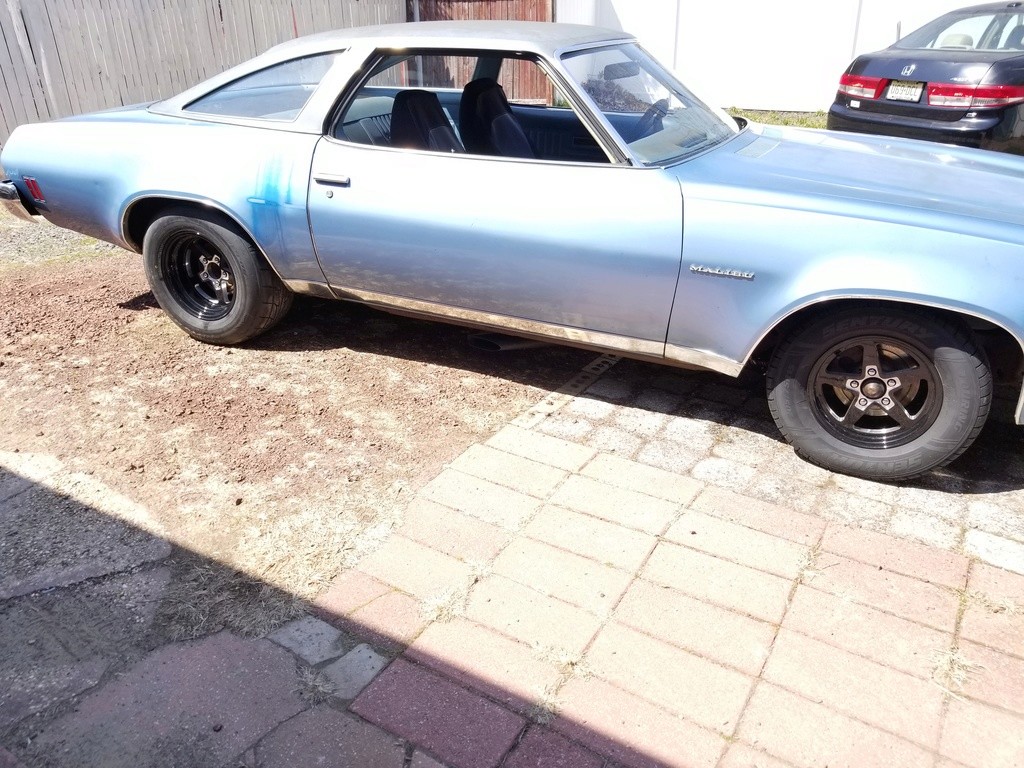

Forgive my craptastic picture taking skills...
![My 73 Chevelle turbo LS swap - Page 3 20180411](https://i.servimg.com/u/f62/14/24/94/52/20180411.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180416](https://i.servimg.com/u/f62/14/24/94/52/20180416.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180415](https://i.servimg.com/u/f62/14/24/94/52/20180415.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180414](https://i.servimg.com/u/f62/14/24/94/52/20180414.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180413](https://i.servimg.com/u/f62/14/24/94/52/20180413.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180417](https://i.servimg.com/u/f62/14/24/94/52/20180417.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180418](https://i.servimg.com/u/f62/14/24/94/52/20180418.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180411](https://i.servimg.com/u/f62/14/24/94/52/20180411.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180416](https://i.servimg.com/u/f62/14/24/94/52/20180416.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180415](https://i.servimg.com/u/f62/14/24/94/52/20180415.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180414](https://i.servimg.com/u/f62/14/24/94/52/20180414.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180413](https://i.servimg.com/u/f62/14/24/94/52/20180413.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180417](https://i.servimg.com/u/f62/14/24/94/52/20180417.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180418](https://i.servimg.com/u/f62/14/24/94/52/20180418.jpg)
alowerlevel- G3GM Member
- Street Cred : 6
Re: My 73 Chevelle turbo LS swap
oh yea I def like them you know me and wheels though Im Obsessed LOL How she running now ?
___________________________________________
1977 Chevelle SE x2
One Mild original
one Wild NON original
Anthony
Limey SE- Management
- Street Cred : 98
Re: My 73 Chevelle turbo LS swap
Still working on the tune. But on only 6-7psi it's surprisingly quick.  Still babying it though trying too keep the stock th350 alive long enough to get the rest of the parts to swap the 4l80e in.
alowerlevel- G3GM Member
- Street Cred : 6
Re: My 73 Chevelle turbo LS swap
Some pics from a show at my dad's work, Took both the 73 and the 67.
![My 73 Chevelle turbo LS swap - Page 3 20180610](https://i.servimg.com/u/f28/14/24/94/52/20180610.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180612](https://i.servimg.com/u/f28/14/24/94/52/20180612.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180611](https://i.servimg.com/u/f28/14/24/94/52/20180611.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180610](https://i.servimg.com/u/f28/14/24/94/52/20180610.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180612](https://i.servimg.com/u/f28/14/24/94/52/20180612.jpg)
![My 73 Chevelle turbo LS swap - Page 3 20180611](https://i.servimg.com/u/f28/14/24/94/52/20180611.jpg)
alowerlevel- G3GM Member
- Street Cred : 6
Re: My 73 Chevelle turbo LS swap
Also put the 67 on the chassis dyno they had there. Â Was 87* out that day and having the car running in the middle of a blacktop parking lot didn't help matters. Â Was seeing 140* intake air temps which was making the computer pull 10 degrees of timing (down to 16 instead of 26 degrees total timing). Â Still made 304hp at the tires.
alowerlevel- G3GM Member
- Street Cred : 6
Re: My 73 Chevelle turbo LS swap
Like it them wheels look real good on the 73
___________________________________________
1977 Chevelle SE x2
One Mild original
one Wild NON original
Anthony
Limey SE- Management
- Street Cred : 98
